Specifications

• Hign-concerned Chemical

  None

  Max Sequential Write

  445Mbps

• Max Sequential Read

  535Mbps

  Transport Protocol

  AHCI

• Bus Type

  SATA III

  RGB

  no

• Cooling Fin

  No

  Package

  Yes

• Nand Flash Type

  TLC

  Controller

  SDSSDA

• Size

  2.5"

  Interface Type

  SATAIII

• Application

  Server

  Brand Name

  SanDisk

• Origin

  Mainland China

  Type

  Internal

• Style

  SSD

  Certification

  CE

Description

Tips: If the speed detection of ssd decreases, it is related to the performance of the computer configuration! Please switch to a top-end computer test! Thank you for you

Interface: SATAIII

Dimension: 100*70*7 mm

Form Factor: 2.5 inch

N/W: 41g

Capacity:  1TB

Flash type: TLC NAND Flash

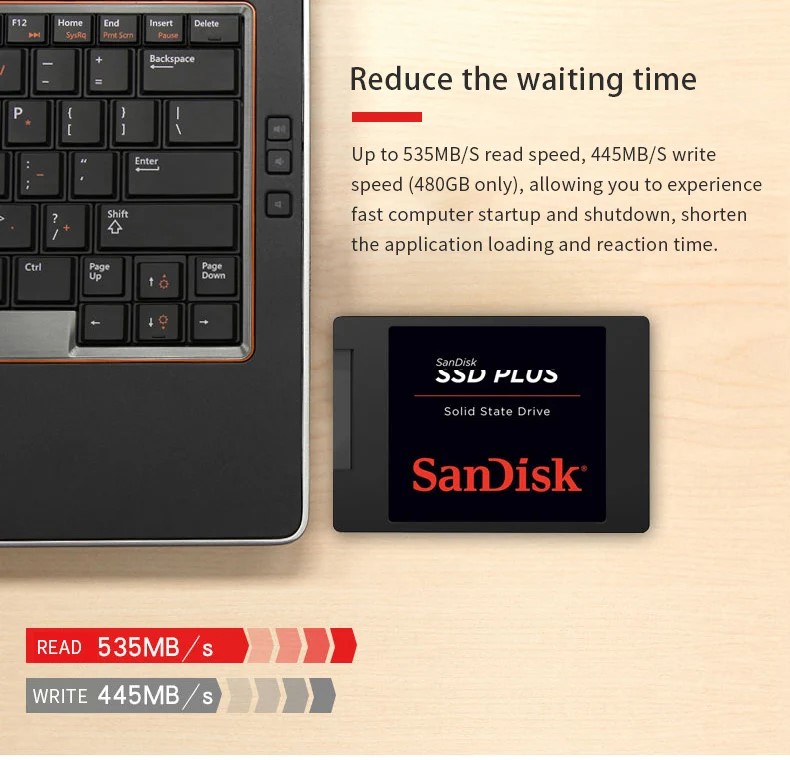

Read/Write Performance:

Sequential Q32T1 Read: Up to 550MB/s

Sequential Q32T1 Write: Up to 420MB/s

Response Time: 0.2ms

Windows boot: 3s

Desktop load: 11s

Power Consumption:

Power Supply: 5V+5%

Standby: 0.3W

4KB Random Write: 2W

Reliability:

Write endurance: 8 years 100G write/day(32G)

Read endurance: unlimited

MTBF: >2,000,000 hours

Data retention: >20years 25

Supports SATA interface rate of 6Gb/s (backward compatible to 3Gb/s and 6Gb/s)

Native Command Queuing up to 32 commands

SATA Device Sleep (DEVSLP)

Data Set Management command (TRIM)

Self-Monitoring, Analysis, and Reporting

Technology (S.M.A.R.T.)

Supports PHY Sleep mode (CFast PHYSLP)

Environment:

Storage temperature: -55~95 degree

Operation temperature: 0~70 degree

Humidity: 5%~95%

Shock: 2000Gs

Application:

The SSD for use in a laptop or mobile PC or machine,

Advertising machine, ATM machine, etc..

Warranty: 3 years

Extrusion and damage of the package by long international transport not to affect the product use is normal,

Product information or an update not in time, give priority to with factory delivery

Please test with ATTO , all of our speed is based on ATTO

Performance may vary based on SSD capacity, hardware test platform, test software, operating system and other system variables.(Factory Design :1GB=1000MB ;Computer Design:1GB=1024MB)

SSD test based on Windows 7/8, above Windows 8, there maybe a compatibility problem .

Actual usable space may be less than the total storage capacity listed due to Decimal measurement used to represent usable capacity of the SSD

Package : SSD × 1

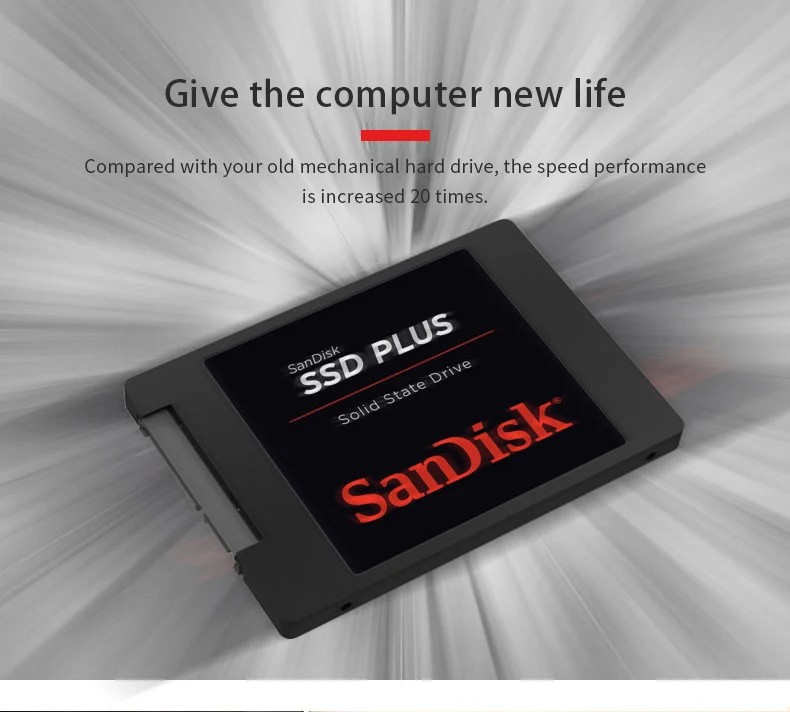

Extend the Life of Your Laptop or Desktop PC

Upgrade your laptop or desktop with a fast, reliable solid state drive from a globally trusted brand and suddenly, your old computer acts and feels like a new machine with faster boot ups, shutdowns and app response times
